NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
3.

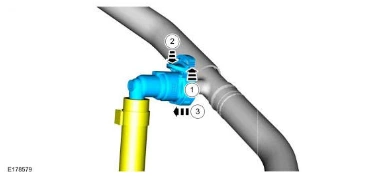

1. Release the secondary locking tab.
2. Depress the primary locking tab.
3. Separate the quick release coupling from the tube.
Connect
1.
1. Push the quick release coupling onto the tube.
NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.
