Quick Release Coupling — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6142

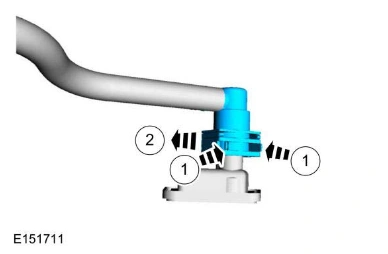

Quick Release Coupling — original illustration 1, reference 6142Original colors & callouts · Select to enlarge

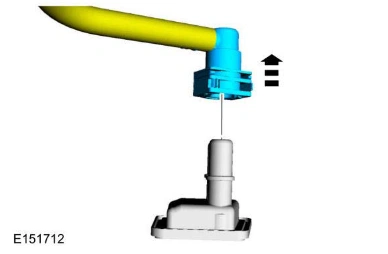

Quick Release Coupling — original illustration 2, reference 6142Original colors & callouts · Select to enlarge

Connect

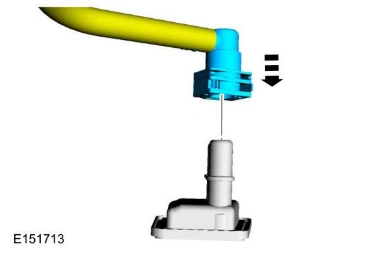

Quick Release Coupling — original illustration 3, reference 6142Original colors & callouts · Select to enlarge

2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

Ford_Mustang_all_2015-2017.pdf · source reference 6142
