Quick Release Coupling — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6140

NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 3

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

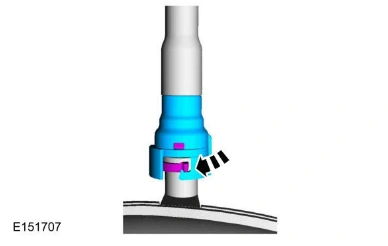

Quick Release Coupling — original illustration 1, reference 6140Original colors & callouts · Select to enlarge

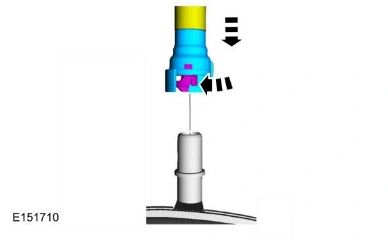

Connect

Quick Release Coupling — original illustration 2, reference 6140Original colors & callouts · Select to enlarge
