Quick Release Coupling — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6137

Quick Release Coupling — original illustration 1, reference 6137Original colors & callouts · Select to enlarge

Connect

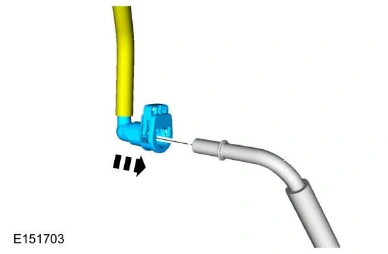

1. Inspect and clean both quick coupling ends.

Quick Release Coupling — original illustration 2, reference 6137Original colors & callouts · Select to enlarge

NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

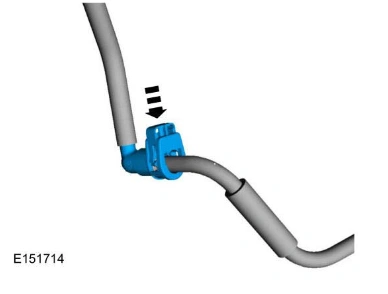

2. Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.

Quick Release Coupling — original illustration 3, reference 6137Original colors & callouts · Select to enlarge

3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect
