Fuel Tank Draining — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6134

Fuel Tank Draining — original illustration 1, reference 6134Original colors & callouts · Select to enlarge

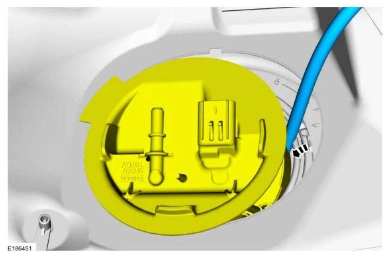

NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

10. Remove and discard the Fuel Pump and Sender Unit O-ring seal.

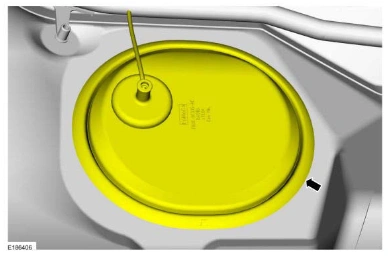

11. Remove the Fuel Level Sensor access cover and position aside.

Fuel Tank Draining — original illustration 2, reference 6134Original colors & callouts · Select to enlarge

NOTE: Clean the fuel level sensor connections, flange surfaces and the immediate surrounding area of any dirt or foreign material.

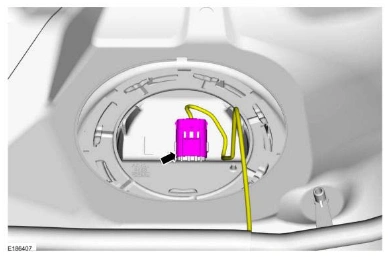

12. Disconnect the electrical connector.

Fuel Tank Draining — original illustration 3, reference 6134Original colors & callouts · Select to enlarge
