Fuel Tank Draining — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6133

7. Disconnect electrical connector and fuel tube quick release coupling. Refer to: Quick Release Coupling .

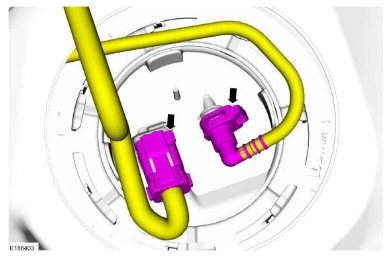

Fuel Tank Draining — original illustration 1, reference 6133Original colors & callouts · Select to enlarge

NOTE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the Fuel Pump and Sender Unit when removing the lock ring.

8. Using the lock ring wrench remove the Fuel Pump and Sender Unit lock ring.

Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

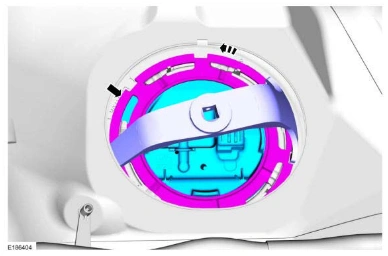

Fuel Tank Draining — original illustration 2, reference 6133Original colors & callouts · Select to enlarge

NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm.

9. Position the Fuel Pump and Sender Unit aside. Using the Fuel Storage Tanker, completely drain the remaining fuel from the LH saddle of the fuel tank.
