NOTE: The supplemental refueling adapter is located in the luggage compartment.

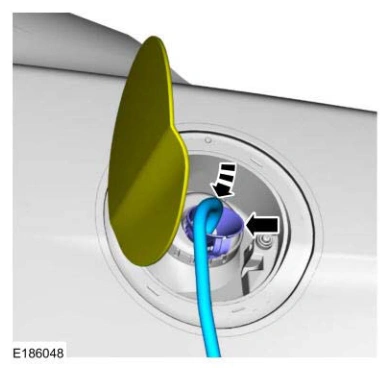

3. Install the supplemental refueling adapter and a 6 ft. length of 5/8 in. semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe until the tube enters the fuel tank.
NOTE: This step is to remove approximately 3/16 tank of the fuel (3 gallons) from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe, lowering the fuel level below the Fuel Pump and Sender Unit mounting flange.
4. Attach the Fuel Storage Tanker to the fuel drain tube and remove as much fuel as possible from the tank.
Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
5. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

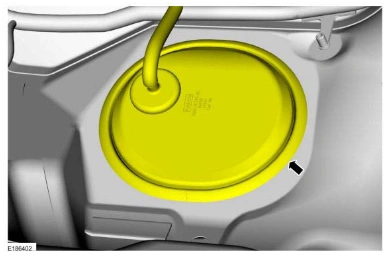

6. Remove the Fuel Pump and Sender Unit access cover and position aside.
