Fuel System Pressure Check

Fuel System - General Information - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,130HTML edition
← Chapter contentsManual collection
Fuel System Pressure Check — original illustration 1, reference 6130Original colors & callouts · Select to enlarge

310-D009 (D95L-7211-A) Fuel Pressure Test Kit

Check

NOTE: This Fuel System Pressure Check is for the low pressure side of the system.

1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3. Disconnect the fuel jumper tube-to-fuel rail quick release coupling. Refer to: Quick Release Coupling .

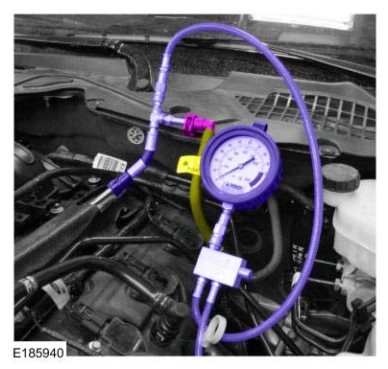

4. Install the Fuel Pressure Test Kit between the fuel jumper tube and the fuel rail.

Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.

Fuel System Pressure Check — original illustration 2, reference 6130Original colors & callouts · Select to enlarge

NOTE: The FPDM electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.

5. Reconnect the FPDM electrical connector.
