Spring Lock Couplings — Fuel System - General Information - 3.7L Duratec (227kW & 301PS) · Reference 6147

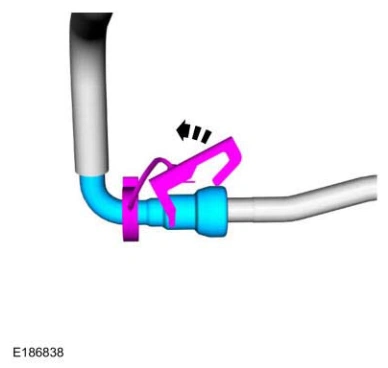

If equipped, remove the fuel tube safety clip.

Spring Lock Couplings — original illustration 1, reference 6147Original colors & callouts · Select to enlarge

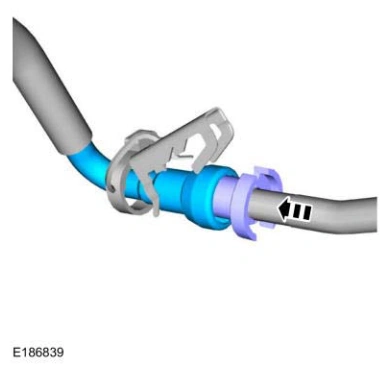

4. Install the Spring Lock Coupling Disconnect Tool on the tube and push into the spring lock coupling to release.

Use Special Service Tool: 310-S039 (T90T-9550-S) Disconnect Tool, Spring Lock Coupling.

Spring Lock Couplings — original illustration 2, reference 6147Original colors & callouts · Select to enlarge

5. Separate the spring lock coupling from the tube.
