Fuel System Pressure Release

Fuel System - General Information - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 6,150HTML edition
← Chapter contentsManual collection

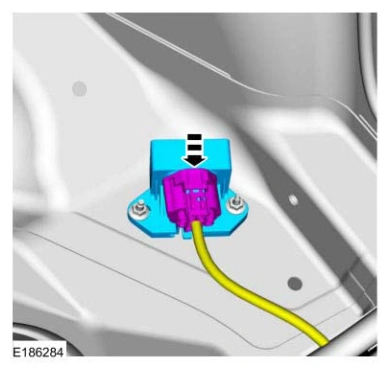

Fuel System Pressure Release — original illustration 1, reference 6150Original colors & callouts · Select to enlarge

3. Start the engine and allow it to idle until the engine stalls.

4. Turn the ignition switch to the off position.

5. When the fuel system service is complete, reconnect the FPDM electrical connector.

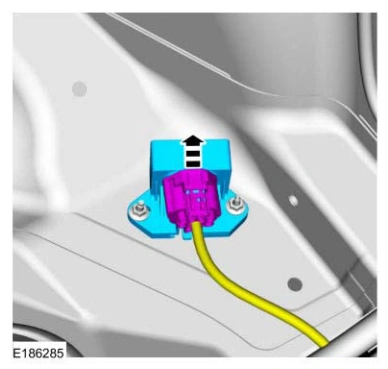

Fuel System Pressure Release — original illustration 2, reference 6150Original colors & callouts · Select to enlarge

6. Install the rear seat cushion. Refer to: Rear Seat Cushion .

7. Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.

8. When service on the fuel system is complete, start the engine and check for leaks.

Ford_Mustang_all_2015-2017.pdf · source reference 6150
