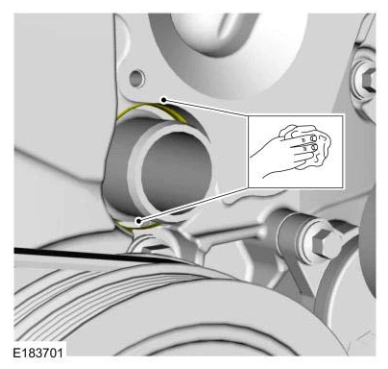

3. Clean the engine front cover to coolant pipe seal area.

Installation — original illustration 2, reference 5101Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FRONT COVER TO COOLANT PIPE SEAL >

INSTALLATION

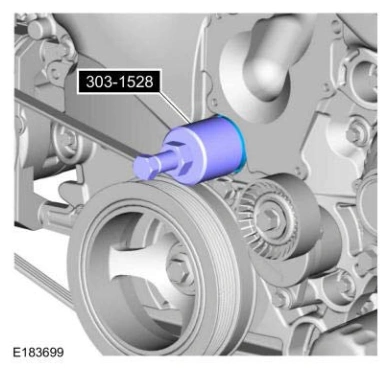

1. Using the special tool, install the front cover to coolant pipe seal.

Position the front cover to coolant pipe seal on the special tool.

Use Special Service Tool: 303-1528 Remover/Installer, Water Tube Seal.

Position the special tool into the engine front cover.

Using a brass hammer, tap the special tool until the front cover to coolant pipe seal bottoms out.

Ford_Mustang_all_2015-2017.pdf · source reference 5101
