REMOVAL AND INSTALLATION > FLYWHEEL > INSTALLATION

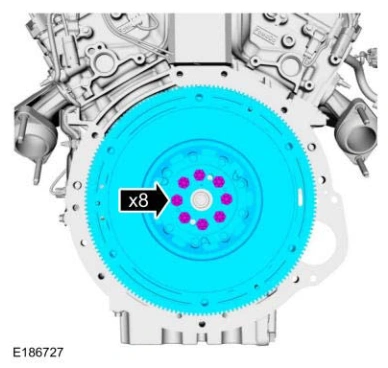

NOTE: One of the 8 flywheel holes are offset so the flywheel can only be installed in one position.

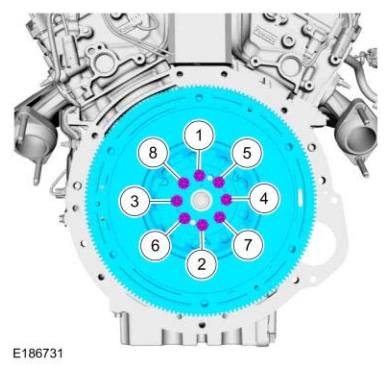

1. Install the flywheel and the bolts.

Torque

: 59 lb.ft (80 Nm)

Flywheel — original illustration 2, reference 5099Original colors & callouts · Select to enlarge

2. Install the clutch. Refer to: Clutch Disc and Pressure Plate - 3.7L Duratec (227kW/301PS) .

3. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
