Cylinder Head LH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,044HTML edition

← Chapter contents Manual collection

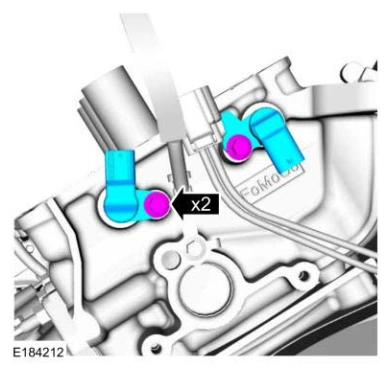

Cylinder Head LH — original illustration 1, reference 5044Original colors & callouts · Select to enlarge

7. Connect the CMP sensors electrical connectors and attach the wiring harness retainer.

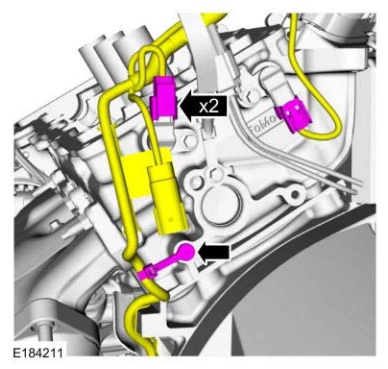

Cylinder Head LH — original illustration 2, reference 5044Original colors & callouts · Select to enlarge

8. Install the ground strap and the nut.

Torque

: 80 lb.in (9 Nm)
