Cylinder Head LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5042

Stage 3 : 90°

Stage 4: 90°

Stage 5: 45°

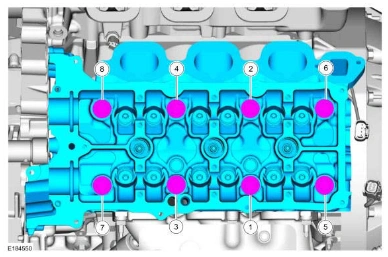

Cylinder Head LH — original illustration 1, reference 5042Original colors & callouts · Select to enlarge

3. Install the new M6 bolt.

Torque

: 89 lb.in (10 Nm)

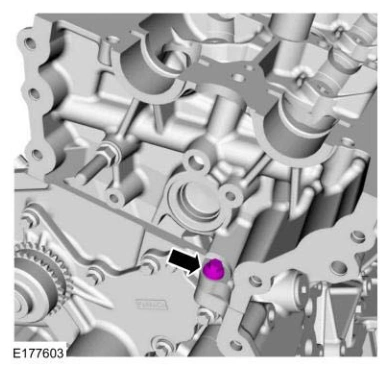

Cylinder Head LH — original illustration 2, reference 5042Original colors & callouts · Select to enlarge

NOTE: The valve tappets must be installed in their original positions.

4. Lubricate the valve tappets with clean engine oil and install.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Ford_Mustang_all_2015-2017.pdf · source reference 5042
