Cylinder Head LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,039HTML edition
← Chapter contentsManual collection
Cylinder Head LH — original illustration 1, reference 5039Original colors & callouts · Select to enlarge

14. Remove and discard the M6 bolt.

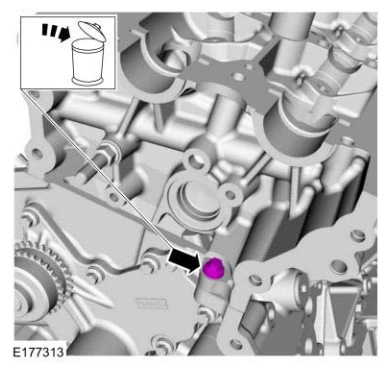

Cylinder Head LH — original illustration 2, reference 5039Original colors & callouts · Select to enlarge

NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

15. Remove and discard the bolts.

Ford_Mustang_all_2015-2017.pdf · source reference 5039
