Cylinder Head LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,036HTML edition
← Chapter contentsManual collection

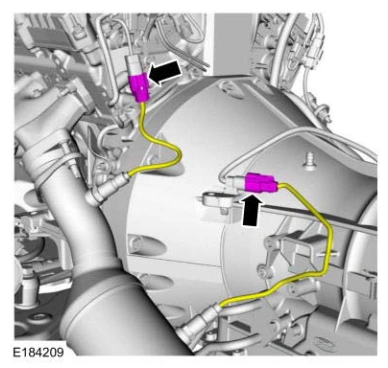

Cylinder Head LH — original illustration 1, reference 5036Original colors & callouts · Select to enlarge

NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

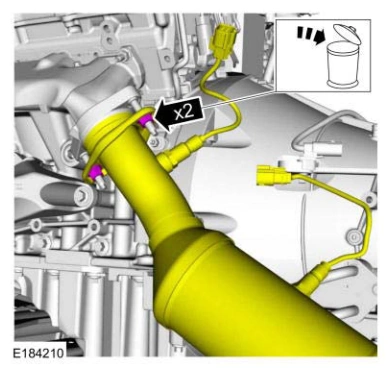

5. Remove and discard the LH catalytic converter flange nuts.

Cylinder Head LH — original illustration 2, reference 5036Original colors & callouts · Select to enlarge

6. Remove the LH camshafts. Refer to: Camshafts .

7. Remove the lower intake manifold. Refer to: Lower Intake Manifold .

8. Remove the nut and the ground strap.
