Camshafts — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5007

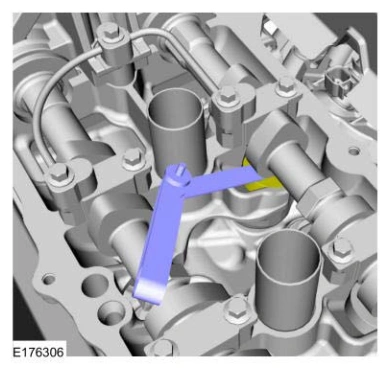

Camshafts — original illustration 1, reference 5007Original colors & callouts · Select to enlarge

NOTE: The number on the valve tappet reflects the thickness of the valve tappet. For example, a tappet with the number 3.310 has the thickness of 3.31 mm (0.13 in).

3. If any of the valve clearances are out of specification, select new tappets using this formula: tappet thickness = measured clearance + the base tappet thickness - most desirable thickness. Select the tappets and mark the installation location.

Adjustment

NOTE: The following step is only necessary if adjustment is required.

1. Remove the camshafts. Refer to: Camshafts .

REMOVAL AND INSTALLATION > CAMSHAFTS

Special Tool(s) / General Equipment

Camshafts — original illustration 2, reference 5007Original colors & callouts · Select to enlarge	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW
Camshafts — original illustration 3, reference 5007Original colors & callouts · Select to enlarge	303-1530 Tool, Chain Tensioner Hold Down TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
