Camshafts — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,010HTML edition
← Chapter contentsManual collection

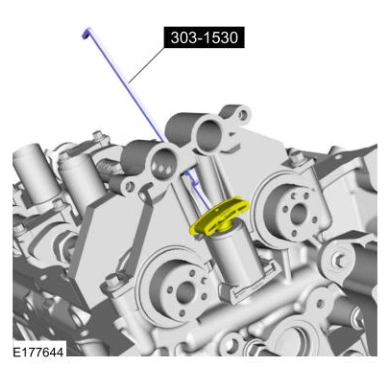

Camshafts — original illustration 1, reference 5010Original colors & callouts · Select to enlarge

6. Remove Special Service Tool: 303-1248 Camshaft holding tools.

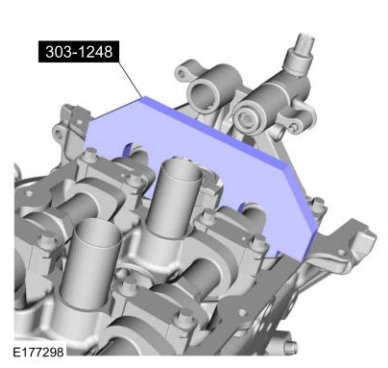

Camshafts — original illustration 2, reference 5010Original colors & callouts · Select to enlarge

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

7. Remove the bolts, camshaft caps and the camshafts.
