Camshafts — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,012HTML edition
← Chapter contentsManual collection

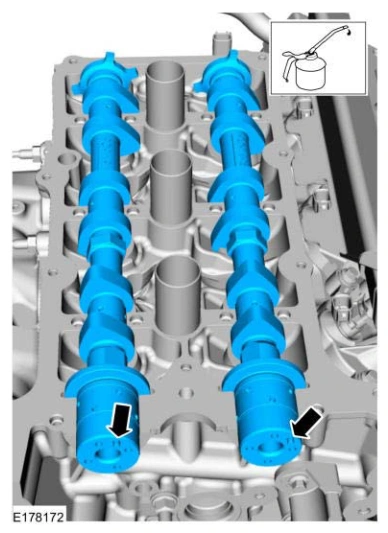

Camshafts — original illustration 1, reference 5012Original colors & callouts · Select to enlarge

NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

3. Position the camshaft seals gaps at 12 o'clock.

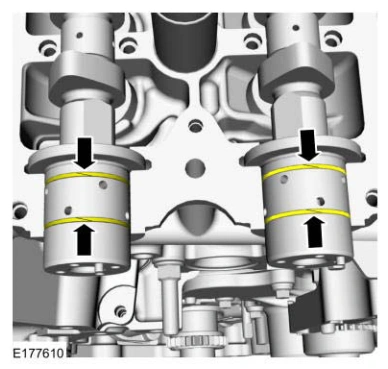

Camshafts — original illustration 2, reference 5012Original colors & callouts · Select to enlarge

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

4. Install the camshaft caps, oil tube and the bolts.

Torque:

Ford_Mustang_all_2015-2017.pdf · source reference 5012
