Camshafts — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,015HTML edition
← Chapter contentsManual collection

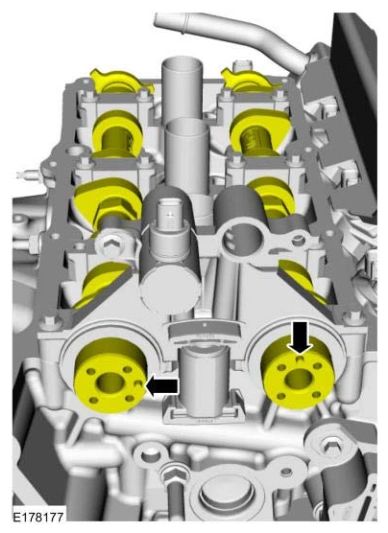

Camshafts — original illustration 1, reference 5015Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

10. Install Special Service Tool: 303-1248 Camshaft holding tools.

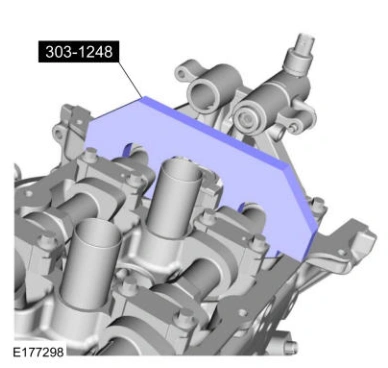

Camshafts — original illustration 2, reference 5015Original colors & callouts · Select to enlarge

NOTE: The VCT oil control solenoids are removed for clarity.

11. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
