Camshafts — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5014

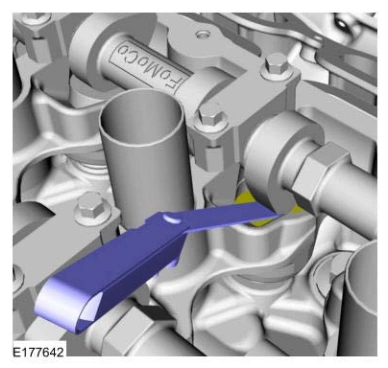

correct size. Refer to: Valve Clearance Adjustment .

Use the General Equipment: Feeler Gauge

Camshafts — original illustration 1, reference 5014Original colors & callouts · Select to enlarge

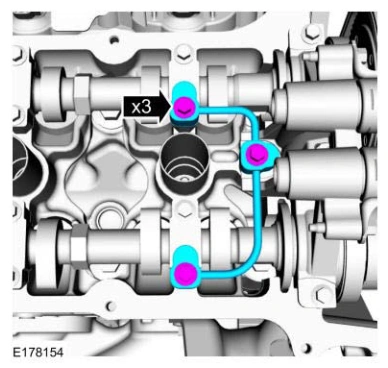

8. Remove the bolts and the RH oil tube.

Camshafts — original illustration 2, reference 5014Original colors & callouts · Select to enlarge

9. Rotate the RH camshafts to the TDC.
