Camshafts — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5013

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

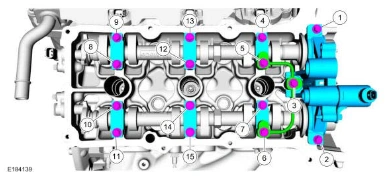

Camshafts — original illustration 1, reference 5013Original colors & callouts · Select to enlarge

5. Loosen the camshaft cap bolts.

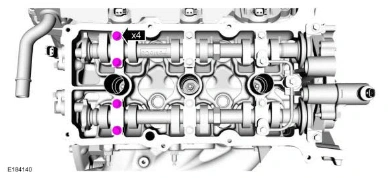

Camshafts — original illustration 2, reference 5013Original colors & callouts · Select to enlarge

6. Tighten the camshaft cap bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

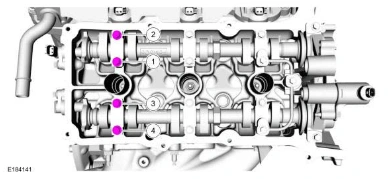

Camshafts — original illustration 3, reference 5013Original colors & callouts · Select to enlarge

NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.

NOTE: Use a camshaft sprocket bolt to turn the camshafts.

7. Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the
