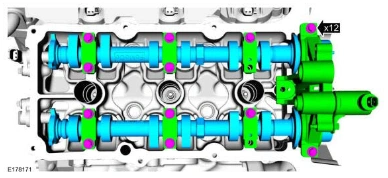

Camshafts — original illustration 1, reference 5011Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CAMSHAFTS > INSTALLATION

RH camshafts

NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

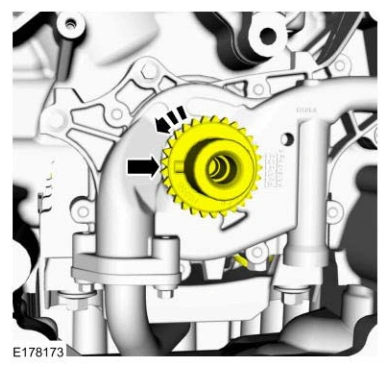

1. Rotate counterclockwise to the 9 o'clock position.

Camshafts — original illustration 2, reference 5011Original colors & callouts · Select to enlarge

2. Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown in illustration.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
