Camshafts — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,009HTML edition
← Chapter contentsManual collection

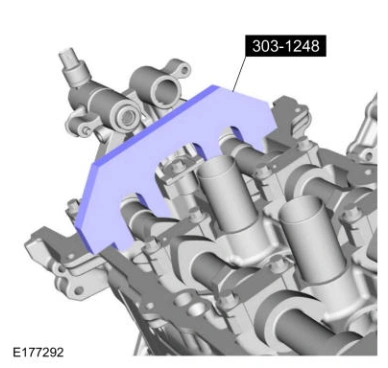

Camshafts — original illustration 1, reference 5009Original colors & callouts · Select to enlarge

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

4. Remove the bolts, camshaft caps and the camshafts.

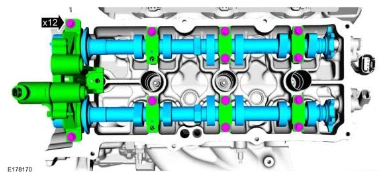

Camshafts — original illustration 2, reference 5009Original colors & callouts · Select to enlarge

RH camshafts

NOTE: The VCT oil control solenoids are removed for clarity.

5. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
