1 6621 Oil pump 2 6625 Oil pump screen and pickup tube O-ring seal 3 6622 Oil pump screen and pickup tube 4 6675 Oil pan 5 6714 Engine oil filter 6 6881 Oil filter adapter 7 9278 Oil pressure switch 8 6A373 Engine-to-transmission spacer plate 9 6D327 Crankshaft rear seal retainer 10 12A227 Crankshaft sensor ring 11 6375 Flexplate 12 6477 Flywheel
Original table alignment retained · Scroll horizontally if needed

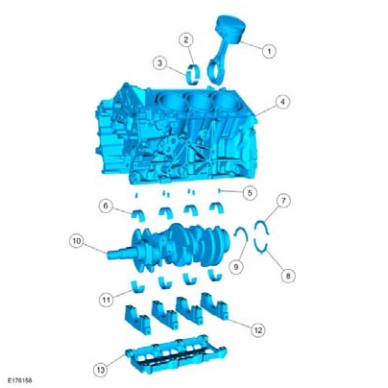

Lower Engine Block (View 2)
Item | Part Number | Description |
1 | 6110 | Piston and connecting rod assembly (6 required) |
2 | 6211 | Connecting rod upper bearing (6 required) |
3 | 6211 | Connecting rod lower bearing (6 required) |
4 | 6010 | Cylinder block |
5 | 6K868 | Piston oil cool valve (6 required) |
6 | 6333 | Cylinder block crankshaft main bearing (4 required) |
7 | 6A341 | Crankshaft upper thrust outer washer |
8 | 6K302 | Crankshaft lower thrust washer |
