5 6B297 Exhaust camshaft VCT oil control solenoid 6 6C270 LH secondary timing chain tensioner 7 6B280 Camshaft mega cap 8 6K297 LH secondary tensioner shoe 9 6K602 Valve train oil feed tube 10 6A258 LH camshaft cap (6 required) 11 6250 LH intake camshaft 12 6B288 LH intake camshaft position (CMP) sensor 13 6B288 LH exhaust CMP sensor 14 6250 LH exhaust camshaft 15 6C524 Intake camshaft variable valve timing (VVT) unit 16 6C525 Exhaust camshaft VVT Unit 17 6C256 LH secondary timing chain 18 12405 Spark plug (3 required) 19 6500 Valve tappet (12 required) 20 6050 LH cylinder head 21 6083 LH cylinder head gasket 22 9448 LH exhaust manifold gasket 23 9Y427 LH exhaust manifold heat shield 24 9431 LH exhaust manifold
Original table alignment retained · Scroll horizontally if needed

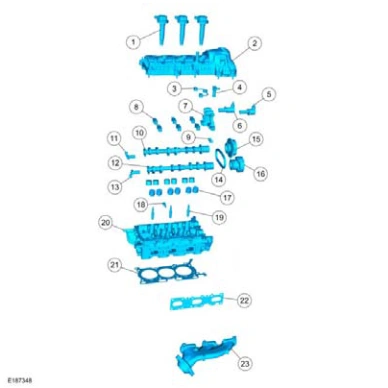

Engine Upper - RH Cylinder Head
Item Part Number Description
