Item | Part Number | Description |
1 | 9424 | Upper intake manifold |
2 | 9J444 | Upper intake manifold support bracket |
3 | 6P013 | RH fuel rail noise shield insulator |
4 | 6P013 | LH fuel rail noise shield insulator |
5 | 9F797 | Fuel rail |
6 | 9J447 | Lower intake manifold |
7 | 12A699 | Knock Sensor (KS) |

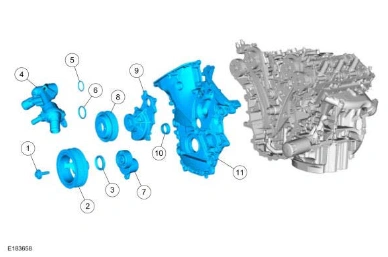

Engine Front
Item | Part Number | Description |
1 | W701512/N806165/N806165 | Crankshaft pulley bolt and washer |
2 | 6316 | Crankshaft pulley |
3 | 6700 | Crankshaft front seal |
4 | 8A586 | Thermostat housing assembly |
5 | 4E856 | Thermostat housing assembly O-ring seal |
6 | 8A571 | Thermostat housing assembly O-ring seal |
7 | 6B209 | Accessory drive belt tensioner |
8 | 8A528 | Coolant pump pulley |
9 | 8501 | Coolant pump |
10 | 6020 | Front cover radial seal |
11 | 6019 | Engine front cover |
Timing Drive Components
