Engine Component View — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5002

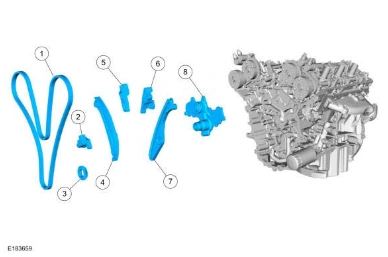

Engine Component View — original illustration 1, reference 5002Original colors & callouts · Select to enlarge

Item	Part Number	Description
1	6268	Timing chain
2	6L266	Primary timing chain tensioner
3	6306	Crankshaft timing sprocket
4	6K255	Primary timing chain tensioner arm
5	6K297	RH primary timing chain guide
6	6K297	LH upper primary timing chain guide
7	6B274	LH lower primary timing chain guide
8	8B593	Channel cover plate

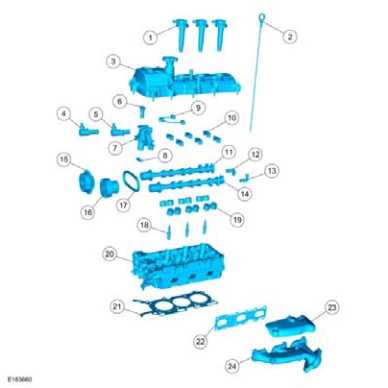

Engine Upper - LH Cylinder Head

Engine Component View — original illustration 2, reference 5002Original colors & callouts · Select to enlarge

Item	Part Number	Description
1	12A375	LH ignition coil-on-plugs (3 required)
2	6750	Oil level indicator
3	6K273	LH valve cover
4	6B297	Intake camshaft variable camshaft timing (VCT) oil control solenoid
