1 12A375 RH ignition coil-on-plugs (3 required) 2 6K271 RH valve cover 3 6K602 Valve train oil feed tube 4 6C270 RH secondary timing chain tensioner 5 6B297 Exhaust camshaft VCT oil control solenoid 6 6B297 Intake camshaft VCT oil control solenoid 7 6B280 Camshaft mega cap 8 6A258 RH camshaft cap (6 required) 9 6K297 RH secondary tensioner shoe 10 6250 RH intake camshaft 11 6B288 RH intake CMP sensor 12 6250 RH exhaust camshaft 13 6B288 RH exhaust CMP sensor 14 6C256 RH secondary timing chain 15 6C524 Intake camshaft VVT unit 16 6C525 Exhaust camshaft VVT unit 17 6500 Valve tappet (12 required) 18 6G004 Cylinder head temperature (CHT) sensor 19 12405 Spark plug (3 required) 20 6050 RH cylinder head 21 6083 RH cylinder head gasket 22 9448 RH exhaust manifold gasket 23 9430 RH exhaust manifold
Original table alignment retained · Scroll horizontally if needed

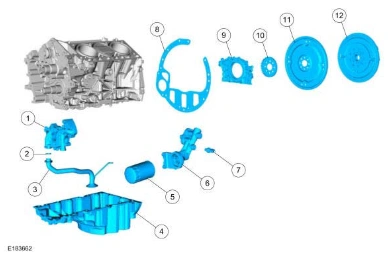

Lower Engine Block (View 1)
Item Part Number Description
