Crankshaft Rear Seal — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,033HTML edition
← Chapter contentsManual collection

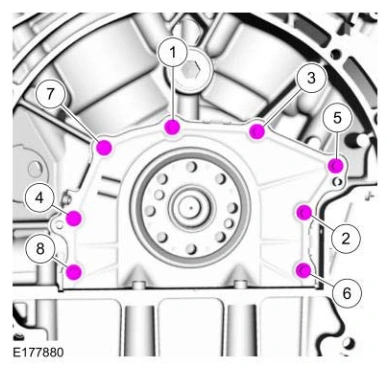

Crankshaft Rear Seal — original illustration 1, reference 5033Original colors & callouts · Select to enlarge

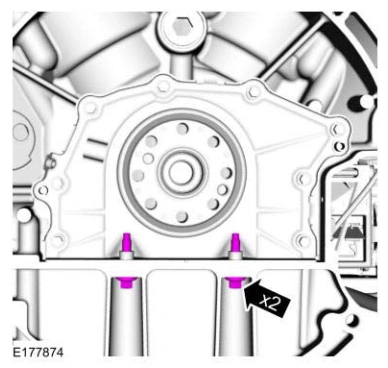

6. Install oil pan-to-crankshaft rear seal bolts.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Crankshaft Rear Seal — original illustration 2, reference 5033Original colors & callouts · Select to enlarge

7. Install the CKP sensor and the bolt.

Torque

: 89 lb.in (10 Nm)
