Crankshaft Rear Seal — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,030HTML edition
← Chapter contentsManual collection

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

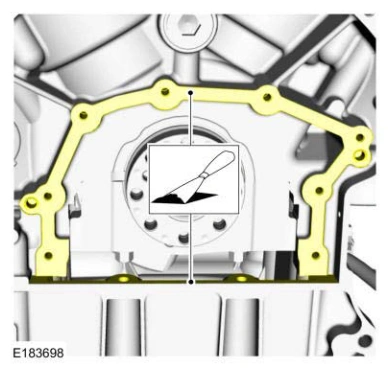

Crankshaft Rear Seal — original illustration 1, reference 5030Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CRANKSHAFT REAR SEAL > INSTALLATION

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

1. Apply 5 mm (0.196 in) bead of silicone sealant.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
