Cylinder Head LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5046

Cylinder Head LH — original illustration 1, reference 5046Original colors & callouts · Select to enlarge

13. Remove the oil pan drain plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment

Install the oil pan drain plug.

Torque

: 20 lb.ft (27 Nm)

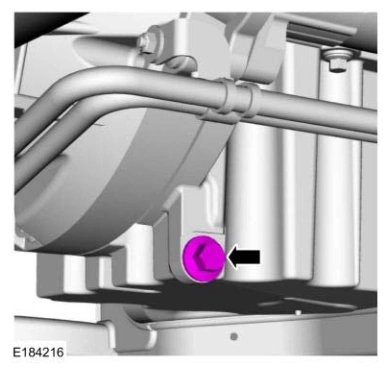

Cylinder Head LH — original illustration 2, reference 5046Original colors & callouts · Select to enlarge

14. Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment
