Cylinder Head RH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,049HTML edition
← Chapter contentsManual collection

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

3. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .

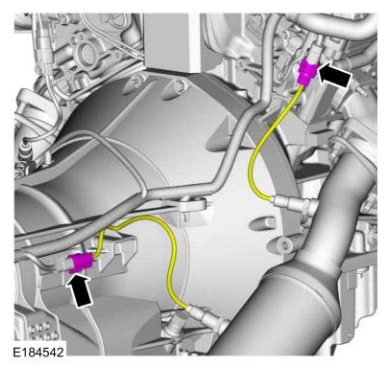

4. Disconnect the RH HO2S and catalyst monitor sensor electrical connectors.

Cylinder Head RH — original illustration 1, reference 5049Original colors & callouts · Select to enlarge

NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

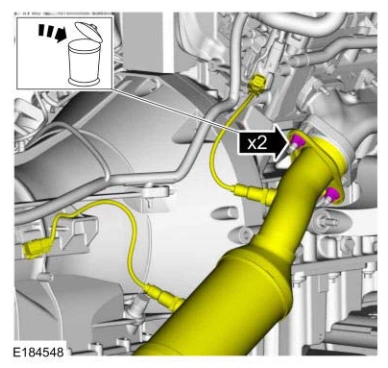

5. Remove and discard the RH catalytic converter flange nuts.

Cylinder Head RH — original illustration 2, reference 5049Original colors & callouts · Select to enlarge

6.
