Cylinder Head RH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,051HTML edition
← Chapter contentsManual collection
Cylinder Head RH — original illustration 1, reference 5051Original colors & callouts · Select to enlarge

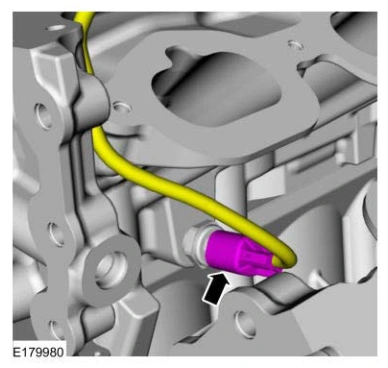

11. Disconnect the CHT sensor electrical connector.

Cylinder Head RH — original illustration 2, reference 5051Original colors & callouts · Select to enlarge

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

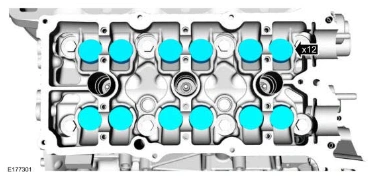

12. Remove the valve tappets.

Cylinder Head RH — original illustration 3, reference 5051Original colors & callouts · Select to enlarge

13. Inspect and install new components as necessary.
