Cylinder Head RH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,050HTML edition
← Chapter contentsManual collection

Remove the RH camshafts. Refer to: Camshafts .

7. Remove the lower intake manifold. Refer to: Lower Intake Manifold .

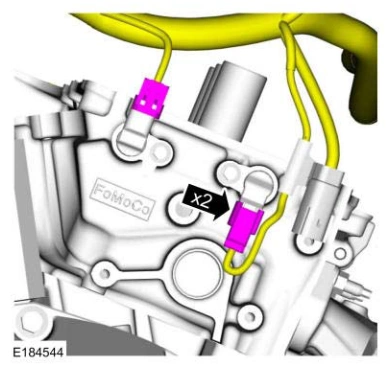

8. Disconnect the RH CMP sensor electrical connectors.

Cylinder Head RH — original illustration 1, reference 5050Original colors & callouts · Select to enlarge

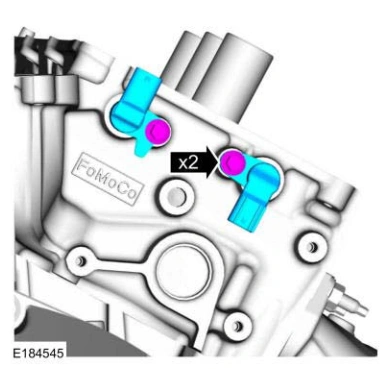

9. Remove the bolts and the RH CMP sensors.

Cylinder Head RH — original illustration 2, reference 5050Original colors & callouts · Select to enlarge

NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

10. Remove the bolt and the RH timing chain guide.
