Cylinder Head RH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5048

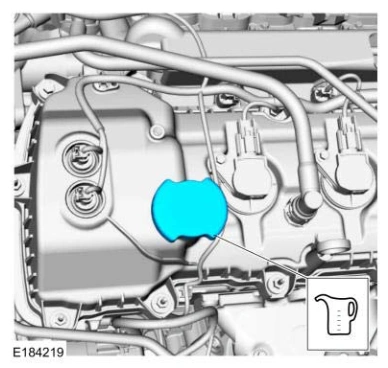

Cylinder Head RH — original illustration 1, reference 5048Original colors & callouts · Select to enlarge

17. Connect the battery ground. Refer to: Battery Disconnect and Connect .

18. Start and check the exhaust system for leaks.

REMOVAL AND INSTALLATION > CYLINDER HEAD RH

Special Tool(s) / General Equipment

Oil Drain Equipment

Materials

Name	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.)	WSS-M2C945-A

REMOVAL AND INSTALLATION > CYLINDER HEAD RH > REMOVAL

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit .

Ford_Mustang_all_2015-2017.pdf · source reference 5048
