Cylinder Head RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5057

NOTE: Lubricate the O-ring seals with clean engine oil.

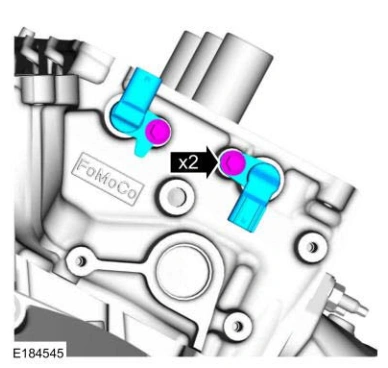

7. Install the CMP sensors and the bolts.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Torque

: 89 lb.in (10 Nm)

Cylinder Head RH — original illustration 1, reference 5057Original colors & callouts · Select to enlarge

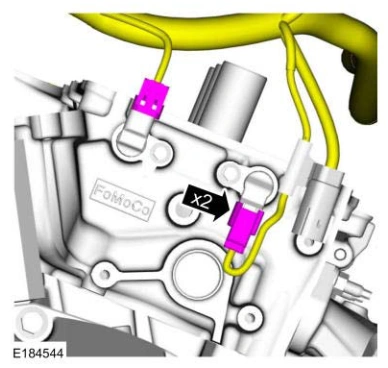

8. Connect the RH CMP sensor electrical connectors.

Cylinder Head RH — original illustration 2, reference 5057Original colors & callouts · Select to enlarge

9. Install the lower intake manifold. Refer to: Lower Intake Manifold .
