Cylinder Head RH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,056HTML edition
← Chapter contentsManual collection

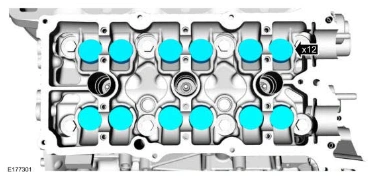

Cylinder Head RH — original illustration 1, reference 5056Original colors & callouts · Select to enlarge

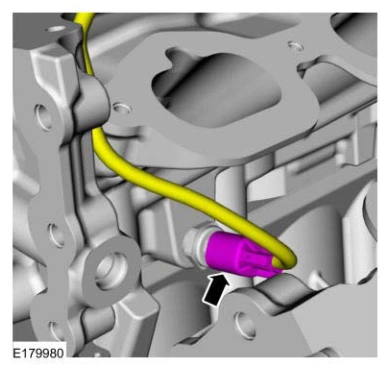

5. Connect the CHT sensor electrical connector.

Cylinder Head RH — original illustration 2, reference 5056Original colors & callouts · Select to enlarge

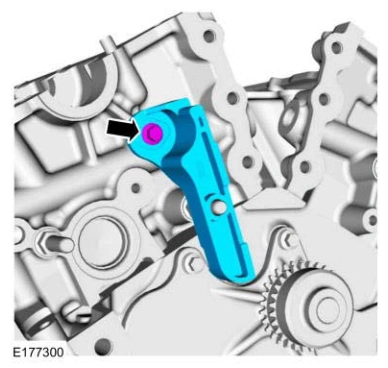

NOTE: Do not use power tools to remove the bolt or damage to the upper RH timing chain guide may occur.

6. Install the RH timing chain guide and the bolt.

Torque

: 89 lb.in (10 Nm)

Cylinder Head RH — original illustration 3, reference 5056Original colors & callouts · Select to enlarge
