Engine Front Cover — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5071

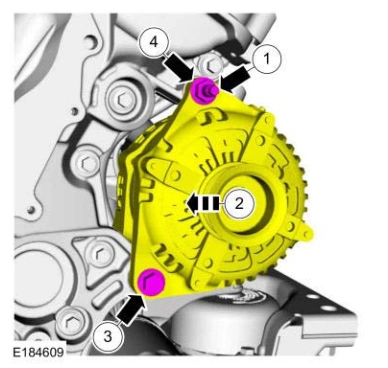

Engine Front Cover — original illustration 1, reference 5071Original colors & callouts · Select to enlarge

9. Install the accessory drive belt tensioner and the bolts.

Torque

: 97 lb.in (11 Nm)

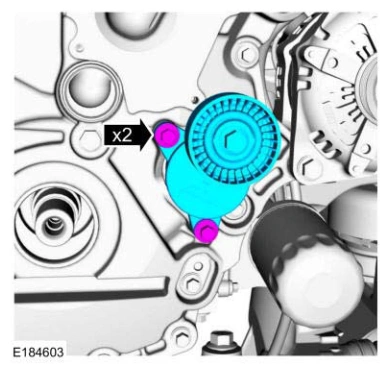

Engine Front Cover — original illustration 2, reference 5071Original colors & callouts · Select to enlarge

10. Install the following items:

Refer to: COOLANT PUMP .

Refer to: Crankshaft Front Seal .

Refer to: Valve Cover RH .

Refer to: Valve Cover LH .

11. Tighten the bolt for the upper intake manifold support bracket.
