Engine Mount LH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5076

Engine Mount LH — original illustration 1, reference 5076Original colors & callouts · Select to enlarge

5. Disconnect the positive battery cable. Refer to: Battery Disconnect and Connect .

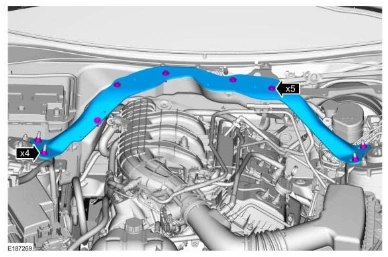

6. Remove the cowl extension nuts.

Remove the bolts and the cowl extension.

Engine Mount LH — original illustration 2, reference 5076Original colors & callouts · Select to enlarge

Convertible/Coupe

7. Remove the following items:

Refer to: AIR CLEANER OUTLET PIPE .

Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

8. Install Special Service Tool: 303-1245 Engine Lift Eye.
