Engine Mount LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5081

Engine Mount LH — original illustration 1, reference 5081Original colors & callouts · Select to enlarge

7. Install the following items:

Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

Refer to: AIR CLEANER OUTLET PIPE .

Convertible

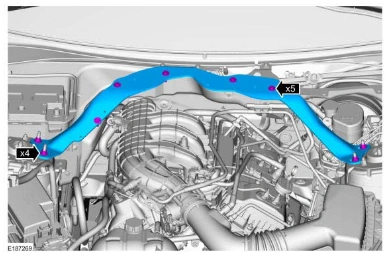

8. Install the cowl extension and the bolts.

Torque

: 26 lb.ft (35 Nm)

Install the cowl extension nuts.

Torque

: 41 lb.ft (55 Nm)

Engine Mount LH — original illustration 2, reference 5081Original colors & callouts · Select to enlarge

9. Connect the positive battery cable. Refer to: Battery Disconnect and Connect .
