Engine Mount RH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,085HTML edition
← Chapter contentsManual collection

9. Remove the retainers and the radiator top shield.

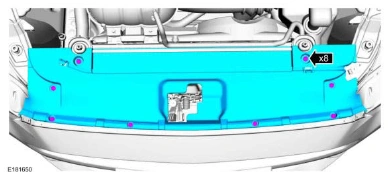

Engine Mount RH — original illustration 1, reference 5085Original colors & callouts · Select to enlarge

10. Install the special tool and raise the engine.

Install Special Service Tool: 303-F072 Support Bar, Engine.

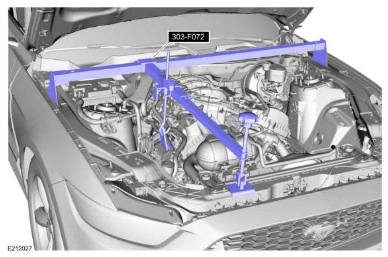

Engine Mount RH — original illustration 2, reference 5085Original colors & callouts · Select to enlarge

11. Remove the bolts and the engine mount.

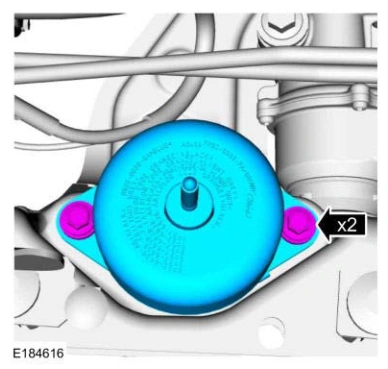

Engine Mount RH — original illustration 3, reference 5085Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > ENGINE MOUNT RH > INSTALLATION
