Exhaust Manifold LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5091

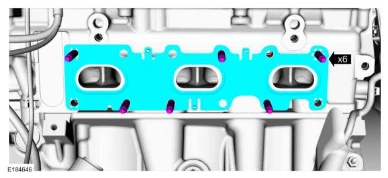

Install the new exhaust manifold studs.

Torque

: 106 lb.in (12 Nm)

Install the new exhaust manifold gasket.

Exhaust Manifold LH — original illustration 1, reference 5091Original colors & callouts · Select to enlarge

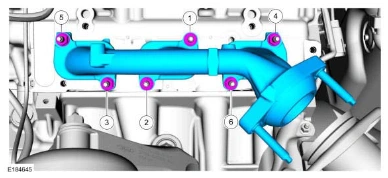

2. Install the exhaust manifold and the new nuts.

Torque:

Stage 1: 168 lb.in (19 Nm)

Stage 2: 18 lb.ft (25 Nm)

Exhaust Manifold LH — original illustration 2, reference 5091Original colors & callouts · Select to enlarge

3. Install the exhaust manifold heat shield and the bolts.

Torque

: 106 lb.in (12 Nm)
