Exhaust Manifold RH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,094HTML edition
← Chapter contentsManual collection

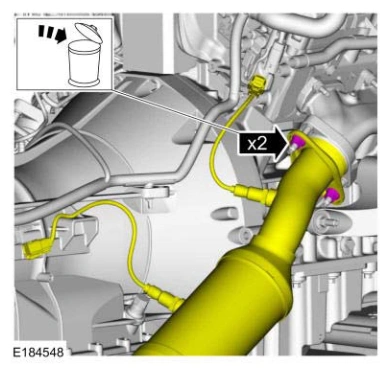

3. Remove and discard the RH catalytic converter flange nuts.

Exhaust Manifold RH — original illustration 1, reference 5094Original colors & callouts · Select to enlarge

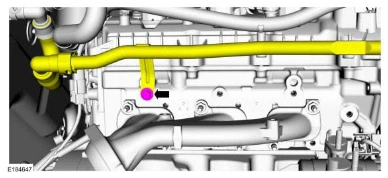

4. Remove the coolant tube bolt from the cylinder head.

Exhaust Manifold RH — original illustration 2, reference 5094Original colors & callouts · Select to enlarge

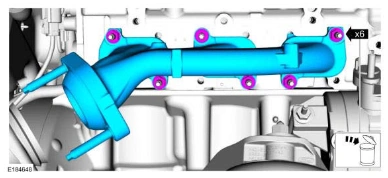

5. Remove the nuts and the exhaust manifold.

Discard the nuts.

Exhaust Manifold RH — original illustration 3, reference 5094Original colors & callouts · Select to enlarge

6. Remove and discard the exhaust manifold gasket.

Remove and discard the exhaust manifold studs.

Ford_Mustang_all_2015-2017.pdf · source reference 5094
