Exhaust Manifold LH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,092HTML edition

← Chapter contents Manual collection

Exhaust Manifold LH — original illustration 1, reference 5092Original colors & callouts · Select to enlarge

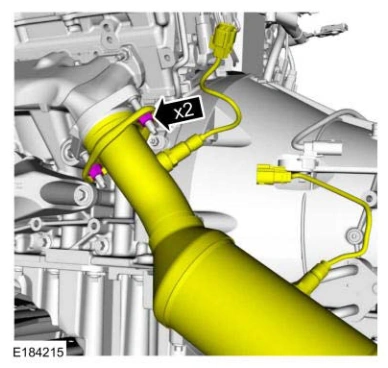

4. Position the LH catalytic converter and install new flange nuts.

Torque

: 30 lb.ft (40 Nm)

Exhaust Manifold LH — original illustration 2, reference 5092Original colors & callouts · Select to enlarge

5. Connect the LH HO2S and catalyst monitor sensor electrical connectors.
