Exhaust Manifold RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5095

Exhaust Manifold RH — original illustration 1, reference 5095Original colors & callouts · Select to enlarge

7. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

REMOVAL AND INSTALLATION > EXHAUST MANIFOLD RH > INSTALLATION

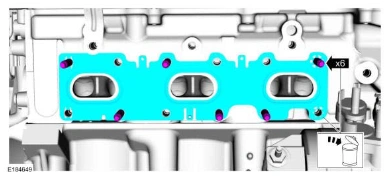

1. Install the new exhaust manifold studs.

Torque

: 106 lb.in (12 Nm)

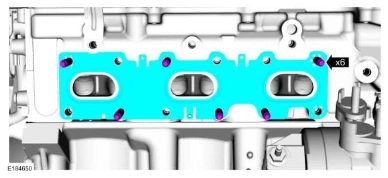

Install the new exhaust manifold gasket.

Exhaust Manifold RH — original illustration 2, reference 5095Original colors & callouts · Select to enlarge

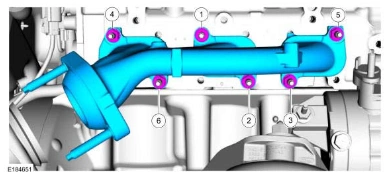

2. Install the exhaust manifold and the new nuts.

Torque:

Stage 1: 68 lb.in (19 Nm)

Stage 2: 18 lb.ft (25 Nm)

Exhaust Manifold RH — original illustration 3, reference 5095Original colors & callouts · Select to enlarge
