Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5423

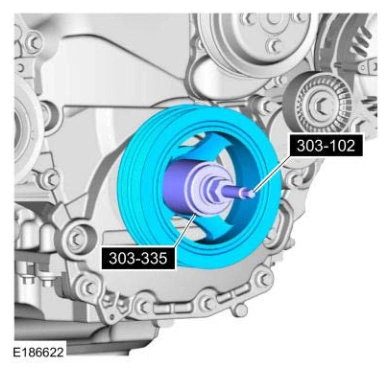

Engine — original illustration 1, reference 5423Original colors & callouts · Select to enlarge

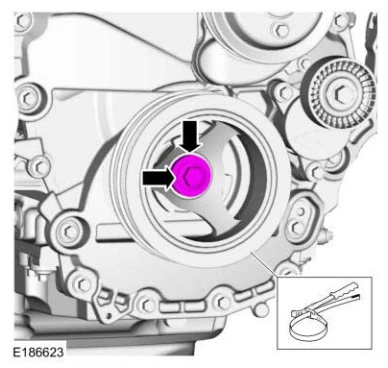

154. Install the new crankshaft bolt and the washer.

Use the General Equipment: Strap Wrench

Torque:

Stage 1: 89 lb.ft (120 Nm)

Stage 2: Loosen: 1 turn(s)

Stage 3: 37 lb.ft (50 Nm)

Stage 4: 90°

Engine — original illustration 2, reference 5423Original colors & callouts · Select to enlarge

155. Install the coolant tube, attach the retainer and install the bolt.

Torque

: 17 lb.ft (23 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5423
