Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5421

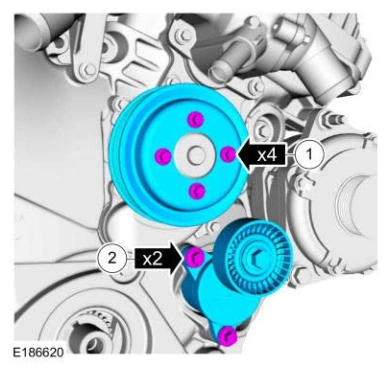

: 18 lb.ft (25 Nm)

Engine — original illustration 1, reference 5421Original colors & callouts · Select to enlarge

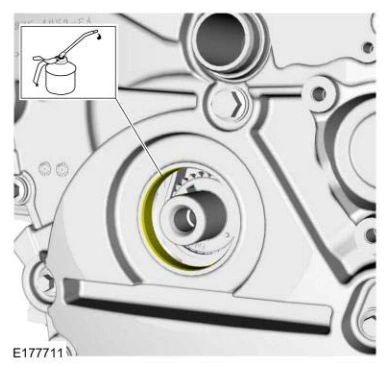

150. Lubricate the crankshaft front seal bore with clean engine oil.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 2, reference 5421Original colors & callouts · Select to enlarge

151. Using the special tools, install the crankshaft front seal.

Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-1251 Installer, Front Seal.
