Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5419

Engine — original illustration 1, reference 5419Original colors & callouts · Select to enlarge

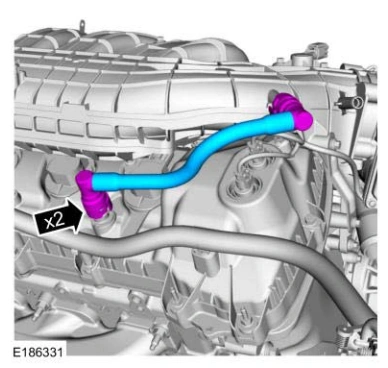

146. Install the PCV tube.

Engine — original illustration 2, reference 5419Original colors & callouts · Select to enlarge

147. Install the generator stud bolt.

Torque

: 71 lb.in (8 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5419
