Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5416

Engine — original illustration 1, reference 5416Original colors & callouts · Select to enlarge

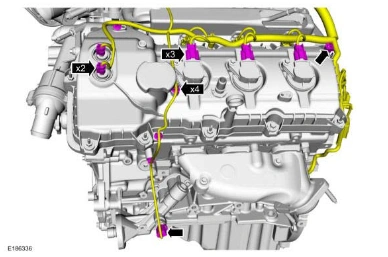

139. Attach the wiring harness retainers.

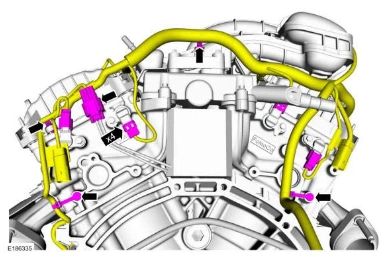

Connect the CMP sensor electrical connectors.

Connect the KS sensor electrical connector.

Engine — original illustration 2, reference 5416Original colors & callouts · Select to enlarge

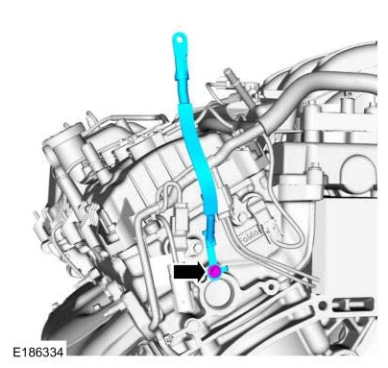

140. Install the ground strap and the bolt.

Torque

: 106 lb.in (12 Nm)

Engine — original illustration 3, reference 5416Original colors & callouts · Select to enlarge
